ORION 160S
Heavy-lift multirotor platform
A 20 kg take-off weight and 110 minutes aloft: a stable airborne platform for heavy sensors.
- 20 kg
- take-off weight
- 110 min
- endurance
- 1,600 mm
- airframe length
- 30 km
- control (optional)
Orion 160S is a multirotor platform with a 1,600 mm airframe. It handles what a fixed-wing aircraft cannot: hovering on a point, slow precise movement, and lifting heavy or bulky equipment.
Four 6S battery packs deliver up to 110 minutes of flight without payload. Control runs on 2.4 GHz out to 7 km, or 30 km with the extended-range option; navigation is manual or by programmed mission.
Applications
- Detailed asset inspection
- 3D survey of construction sites
- Search and rescue
- Carrying scientific instruments
Payloads
- Still camera (aerial photography)
- HD video camera
- NDVI multispectral sensor
- Thermal imager
- IR camera
- Gas analyser
Technical specifications
| Parameter | Value |
|---|---|
| Airframe length | 1,600 mm |
| Airframe height | 580 mm |
| Landing gear (H × L × W) | 370 × 740 × 580 mm |
| Motors | Electric |
| Weight without batteries | 5.8 kg |
| Take-off weight with batteries | 20 kg |
| Maximum climb rate | 5 m/s |
| Maximum flight speed | up to 40 km/h |
| Battery | Li-Ion 4×6S 16,000 mAh |
| Endurance | up to 110 min without payload |
| Maximum wind speed | up to 15 m/s |
| Operating altitude | 10–500 m |
| Operating frequency | 2.4 GHz |
| Control range | Up to 7 km (30 km with the extended-range option) |
| Navigation | Manual / programmable |
| Operating temperature | −30 °C … +40 °C |

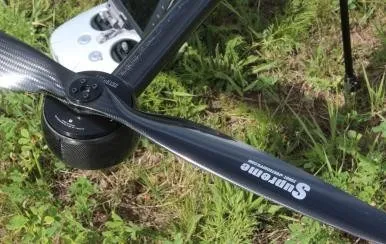

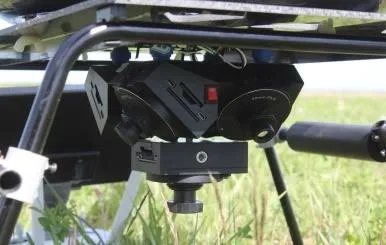

Gallery
ORION 160S
